Make every testbench component survive a warm, IP-level, or subsystem reset without hanging, comparing stale traffic, or corrupting its register model.
Trace the mechanism from failure signature through independent evidence, component ownership, stress, and recovery.
A worked mechanism
Reuse the tag, but never reuse the old expectation.
A reset that cancels in-flight work creates a new observation epoch.
01
Before reset
epoch 4 / ID9 → expected 0x35
An accepted request owns a pending scoreboard entry.
↓
02
Cancellation boundary
epoch 4 / ID9 → cancelled
Stop the affected producer and retire the old expectation according to reset scope.
↓
03
After restart
epoch 5 / ID9 → expected 0xA2
The same wire ID now identifies unrelated work.
Follow the stated ordering; spacing does not represent elapsed time.
Work it through
A stale response arrives
An old payload 0x35 after restart must not consume the new expectation for 0xA2.
Match by protocol identity plus internally tracked epoch; use a drain or quarantine rule when wire IDs cannot distinguish late responses.
Watch for this
Calling RAL reset() only updates model state; it does not reset the DUT or cancel a driver handshake.
Check your reasoning
Test dirty reset with repeated IDs and unrelated live domains. Assert that cancelled payload never becomes a new successful result.
Mechanism and evidence
See it. Work it through.
Reject old work after reset.

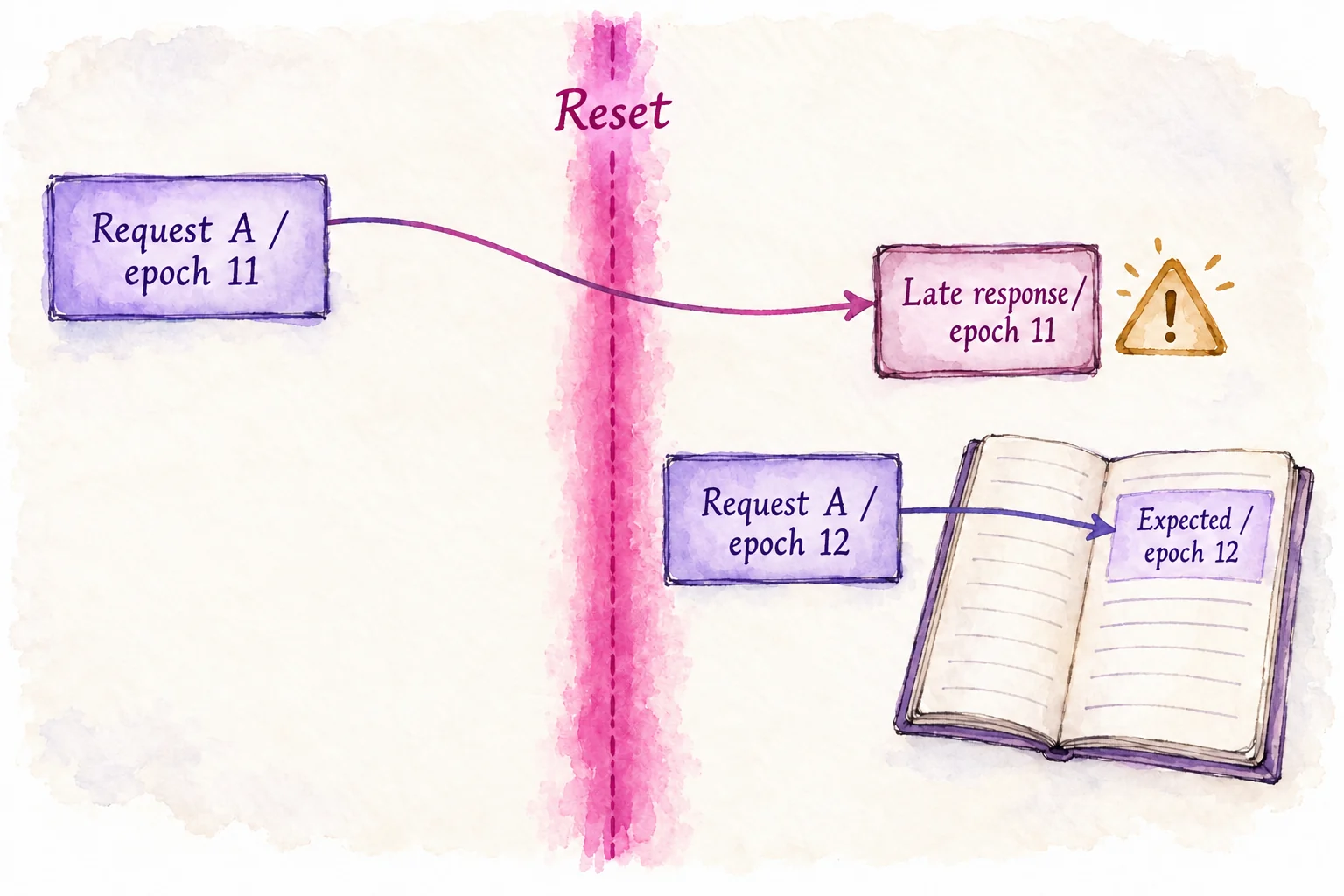

The reset boundary creates a new lifetime. Reusing an ID does not make an old response belong to the new request.View full-size diagram ↗
Request A is outstanding in epoch 11. Reset cancels old work; after the interface is ready, a new request reuses A in epoch 12. Now an old response arrives.
Follow the scoreboard entry
Event
Identity
Expected result
Old request
Identity(11, A)
Expected resultAdd an outstanding expectation.
Reset
IdentityEpoch 11 ends
Expected resultCancel old expectations under this contract.
New request
Identity(12, A)
Expected resultTrack a new expectation after readiness.
Late response
Identity(11, A)
Expected resultReport stale work; keep (12, A) pending.
Worked check · equal ID is not enough
expected = (epoch 12, ID A)
received = (epoch 11, ID A)
match = false → new request stays pending
Matching only ID A would incorrectly complete the new transaction. Follow the stale-response trace in the lab and check that the new expectation remains pending.
This fixture supplies epoch provenance. An untagged interface needs a real drain or cancellation contract before reusing IDs; a checker cannot infer an ambiguous response’s origin from its ID alone.
Guided verification lab
The reset boundary changes what is valid.
Track the expectation ledger as a domain resets, restarts, and receives a response from its previous lifetime.
STEP THROUGH
STATE & OBSERVATIONCoordinated reset / 1 of 5
Checkpoint 1 · Epoch 11 has accepted work.
RESET
0
EPOCH
11
LEDGER
11:A
RESPONSE
—
Compare all 5 checkpoints
1 · Epoch 11 has accepted work.
RESET
0
EPOCH
11
LEDGER
11:A
RESPONSE
—
2 · Reset cancels this domain’s work.
RESET
1
EPOCH
11
LEDGER
cancel
RESPONSE
—
3 · Clean up the matching expectations.
RESET
1
EPOCH
11
LEDGER
empty
RESPONSE
—
4 · Epoch 12 starts after readiness.
RESET
0
EPOCH
12
LEDGER
12:A
RESPONSE
—
5 · New work completes in its own epoch.
RESET
0
EPOCH
12
LEDGER
empty
RESPONSE
12:A
Coordinated reset · one column per checkpoint
Signal / state
1
2
3
4
5
RESET
0
1
1
0
0
EPOCH
11
11
11
12
12
LEDGER
11:A
cancel
empty
12:A
empty
RESPONSE
—
—
—
—
12:A
Inspect the contract
Epoch 11 has accepted work.
Epoch
11
Pending
A
Transaction A is outstanding in the domain that will reset. The independent scoreboard carries its ID and epoch.
Evidence to inspect
Preserve the accepted handshake and expectation identity.
Checkpoint 1 / 5
Inspect the checker Selected checkpoint pseudocode
Conceptual checker / selected checkpoint
pending[{11, A}] = expected_A;
Example contract & limitations
Example contract. The fixture provides epoch provenance. On an untagged interface, a real drain/cancellation contract is needed before reusing IDs. Only the reset domain is invalidated; sticky and unaffected-domain state follows its specification. Checkpoints show selected state changes, not equally spaced simulation cycles.
Read the complete walkthrough
Coordinated reset
Epoch 11 has accepted work.. Transaction A is outstanding in the domain that will reset. The independent scoreboard carries its ID and epoch. Evidence: Preserve the accepted handshake and expectation identity.
Reset cancels this domain’s work.. Stop new stimulus and drive the reset-safe interface state. The reset contract explicitly invalidates transaction A. Evidence: Check driver VALID, reset assertion, and the domain cancellation boundary.
Clean up the matching expectations.. Flush invalidated expectations and resynchronize model and register abstraction state. Preserve state the specification marks sticky. Evidence: Verify no epoch-11 expectation remains eligible for a future response.
Epoch 12 starts after readiness.. The domain finishes initialization. New transaction A can now be tracked with epoch-12 provenance. Evidence: Observe readiness before reopening stimulus.
New work completes in its own epoch.. The response belongs to epoch 12 and matches the current expectation. Old work cannot consume it. Evidence: Correlate epoch, ID, and data before retiring the entry.
Late old-epoch response
Epoch 11 has accepted work.. Transaction A is outstanding in the domain that will reset. The independent scoreboard carries its ID and epoch. Evidence: Preserve the accepted handshake and expectation identity.
Reset cancels this domain’s work.. Stop new stimulus and drive the reset-safe interface state. The reset contract explicitly invalidates transaction A. Evidence: Check driver VALID, reset assertion, and the domain cancellation boundary.
Clean up the matching expectations.. Flush invalidated expectations and resynchronize model and register abstraction state. Preserve state the specification marks sticky. Evidence: Verify no epoch-11 expectation remains eligible for a future response.
Epoch 12 starts after readiness.. The domain finishes initialization. New transaction A can now be tracked with epoch-12 provenance. Evidence: Observe readiness before reopening stimulus.
A stale response is a real failure.. A response with epoch-11 provenance arrives after restart. Report the violation and leave epoch-12 transaction A pending. Evidence: Retain the stale response and show that the new expectation was not consumed.
Related implementation: Coordinate scoreboard, sequencer, and RAL cleanup
Cleanup follows the hardware state transition: stop producers, discard predictions that no longer exist, synchronize the register mirror, then wait for reset release.
Coordinated reset, checkpoint 1: Epoch 11 has accepted work.. Inspect the contract.Understand the failure+
Epoch-aware recoveryReset is a coordinated state transition, not a pause button.
A reset observer ends the old comparison epoch, cancels traffic, clears interfaces and models, then releases stimulus only after the DUT advertises readiness.
01Run · epoch 11requests and responses in flight02Reset assertedstop sequences · drop objections03Quiescedrive idle · cancel stale responses04Rebuild · epoch 12reset RAL, predictors, and scoreboards05Resumewait for ready · start fresh traffic
Before resetExpected ID 7 · epoch 11discard→ reset fence →After readyExpected ID 1 · epoch 12compare
observed transaction epoch = active scoreboard epoch → eligible for comparison
Reset event fanout
One reset edge interrupts stimulus first, then reconciles checking and model state before traffic resumes.
Reset edge
Warm, IP, subsystem, or global reset asserts during traffic.
Reset handler
Broadcasts the event and owns cleanup ordering.
Driver and sequencer
Abort the handshake and kill requests that cannot complete.
Scoreboard
Flushes predictions and actual observations invalidated by reset.
RAL mirror
Applies the correct reset kind while preserving sticky fields.
Restart gate
Waits for release and initialization before stimulus resumes.
Modern SoCs reset more than once at power-on. Warm resets, IP resets, and subsystem resets can occur while the rest of the chip remains live.
A testbench that cannot recover from reset during traffic cannot verify high-availability or error-recovery behavior.
Hardware clears registers and pipelines immediately, while software testbench objects preserve state until they are told what to discard, retain, or restart.
What is difficult
A sequence can block forever waiting for a response that the reset erased.
A scoreboard can retain pre-reset expected items and compare them against unrelated post-reset traffic.
Reset scope is not always global. One agent may need to restart while unrelated interfaces continue running.
UVM phase jumping requires every component and domain to move coherently, which is difficult to debug and scale across a large team.
Failure signatures
A driver completes a stale handshake or leaves valid asserted across reset.
A sequencer keeps requests that can no longer receive responses.
Expected or actual queues leak across the reset boundary and create false mismatches.
The RAL mirror retains pre-reset values even though hardware returned non-sticky fields to defaults.
A DUT buffer fails to clear and releases old data after reset.
Compare approaches+
Two viable approaches—and their cost
UVM phase jumping
Force the UVM domain back to reset_phase so components reinitialize through standard phase callbacks.
Strengths
Uses the official UVM phase mechanism.
Can coordinate component reinitialization through existing reset-phase code.
Costs
Difficult to debug when only part of the environment jumps.
Can deadlock when components or domains do not move together.
Provides less granular control for an IP-only reset while other agents continue.
Centralized reset handler
Monitor reset as a dynamic sideband event and explicitly broadcast cleanup and restart work.
Strengths
Keeps reset behavior explicit and independent of the UVM phase controller.
Can reset one agent or subsystem without disturbing unrelated traffic.
Makes each component's flush, kill, preserve, and restart policy reviewable.
Costs
Every stateful component needs a reset cleanup or recovery method.
The environment must define ordering between aborting stimulus, flushing checks, and resetting mirrors.
Explain it in an interview+
Interview answer, built from the mechanism
A
Treat reset as a dynamic event rather than a one-time phase. A dedicated reset handler detects the edge and tells every affected component what to do.
Make the driver interruptible with fork-join_any so the reset watcher can abort a bus handshake immediately. Stop sequencer activity so no blocked request remains behind.
Flush expected and actual scoreboard state that hardware discarded, and call the appropriate RAL reset type so the mirror matches hardware defaults while sticky state is preserved.
Wait for reset release, perform any required reboot or initialization checks, and only then resume stimulus.
Assign responsibilities+
Component responsibility contract
Component responsibilities and required verification changes for Mid-Test Reset Orchestration
Component
Responsibility
Required change
ComponentDriver
ResponsibilityHandshake abort
Required changeWrap sequence-item driving and reset detection in fork-join_any.
ComponentSequencer
ResponsibilitySequence kill
Required changeCall stop_sequences() to clear blocked and queued requests.
ComponentScoreboard
ResponsibilityData flush
Required changeClear expected and actual queues plus local counters and state machines.
ComponentRAL model
ResponsibilityMirror reset
Required changeCall the correct reg_model.reset() type to match hardware defaults.
ComponentReset handler
ResponsibilityEvent ordering
Required changeBroadcast reset, coordinate cleanup, wait for release, and authorize restart.
Build the checker+
Implementation patterns
Abort an in-flight driver operationsystemverilog
task mac_driver::run_phase(uvm_phase phase);
forever beginwait (vif.rst_n === 1'b1);
fork
begin : drive_process
forever begin
seq_item_port.get_next_item(req);
drive_item(req);
seq_item_port.item_done();
endendbegin : reset_watcher
@(negedge vif.rst_n);
uvm_report_info("DRV", "Reset detected: abort drive", UVM_LOW);
end
join_any
disable fork;
cleanup_signals();
endendtasktask mac_driver::cleanup_signals();
vif.valid <= 1'b0;
vif.data <= 'z;
// The reset handler kills the sequence, so this path does not call item_done().endtask
The drive loop and reset watcher race. Reset wins immediately, disable fork removes stale drive activity, and the interface returns to an idle value before the next boot.
Coordinate scoreboard, sequencer, and RAL cleanupsystemverilog
Cleanup follows the hardware state transition: stop producers, discard predictions that no longer exist, synchronize the register mirror, then wait for reset release.
Stress the design+
Stress recipe
Fill request queues, response queues, pipelines, and DUT buffers before asserting reset.
Assert reset during an active valid-ready handshake and confirm the driver drops valid without hanging.
Exercise warm, IP-level, subsystem, and full reset scopes while unrelated agents remain active.
Verify sticky registers retain their value while non-sticky fields and the RAL mirror return to the correct reset type.
Restart traffic immediately after the allowed reboot window and reject any pre-reset data.
Follow-up questions
How do you verify registers that are sticky and are not cleared by a warm reset?
Model distinct RAL reset kinds. On a warm reset, call model.reset("WARM") so only non-sticky fields return to their warm-reset defaults while sticky mirrors retain their values.
What happens to the sequence that reset interrupted?
Usually the environment kills it. If the use case requires a resumable sequence, checkpoint its progress in a configuration object before termination and restart from that state after reset recovery.
How do you expose a DUT buffer that fails to clear on reset?
Run a dirty-reset test: fill every buffer with traffic, assert reset while state is maximally dirty, then check immediately after release that no pre-reset payload leaks out.
